Reference: 940-516

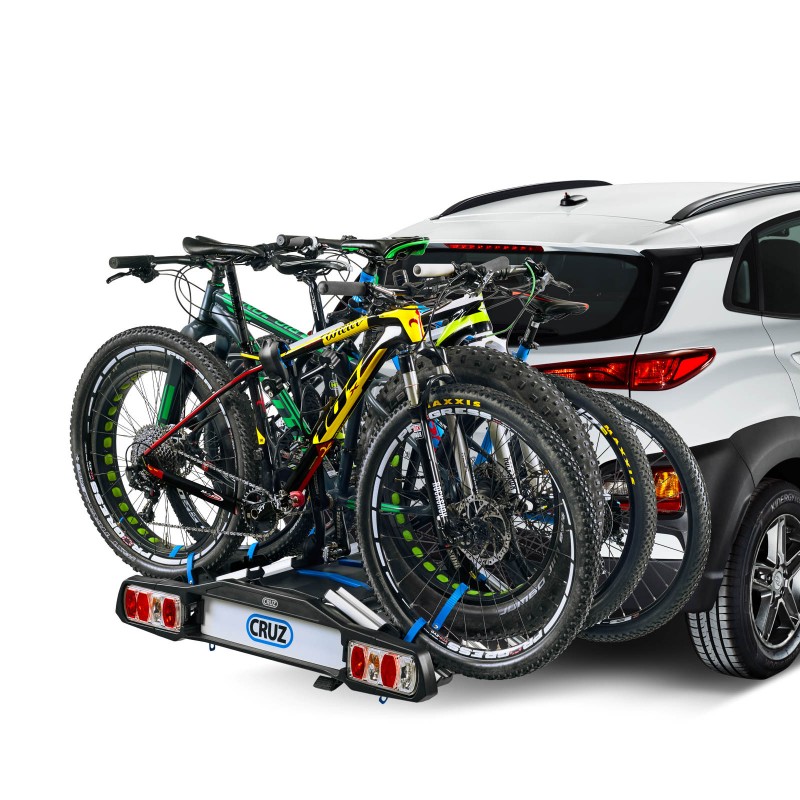

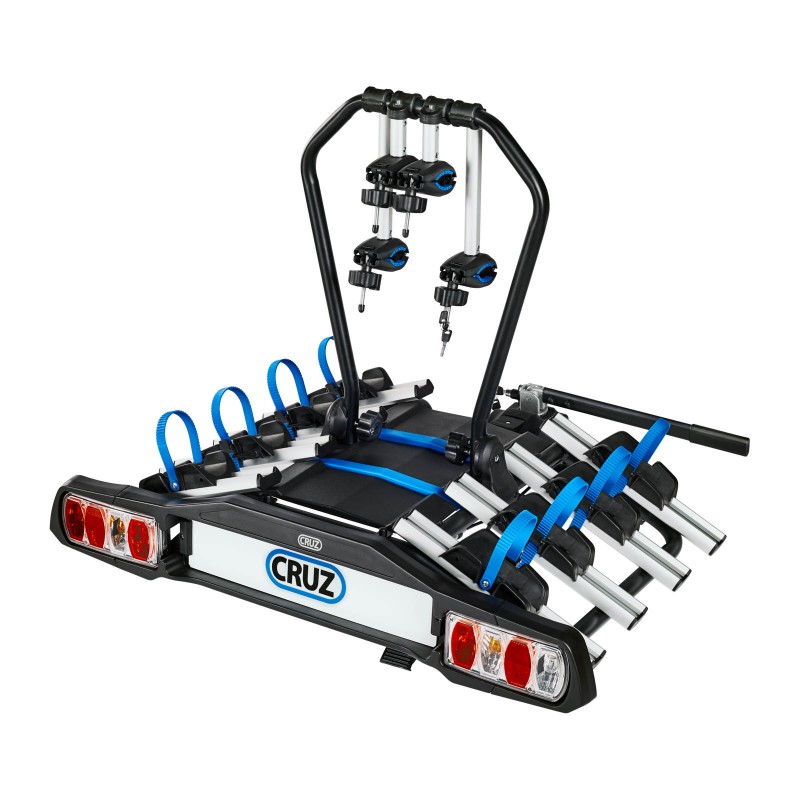

CRUZ Pivot R3 EU towbar - 4 bikes
Towbar bike carrier with a modern design and exclusive characteristics.
Downloads:
Assembly instructions - 940516.pdf - 17.27 MB
Safety - Use instructions - 278 KB
Attractive design with an elegant combination of materials.
Easy fitting to most of towbars (Class A50-X).

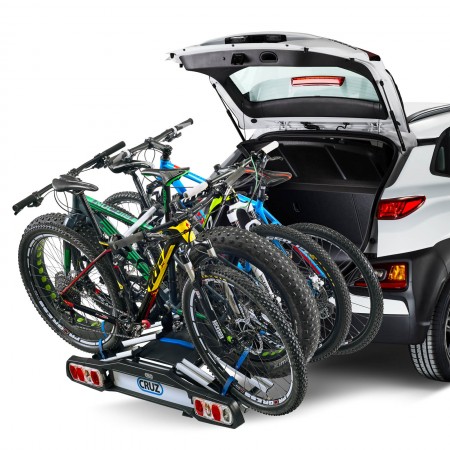

Tiltable, thanks to a tilt mechanism by pedal which allows an easy and quick access to the boot even when the bike is mounted.

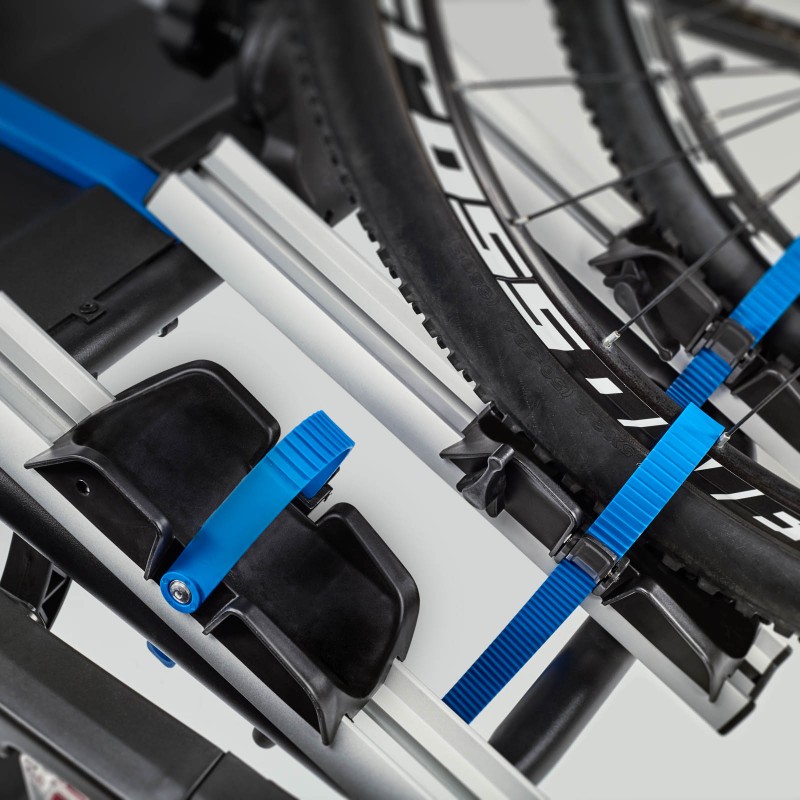

Wide adjustable plastic pieces for comfortable securing of the wheels, with quick-adjust and long length straps to allow compatibility with tires up to 4.8 '' - Fatbike.

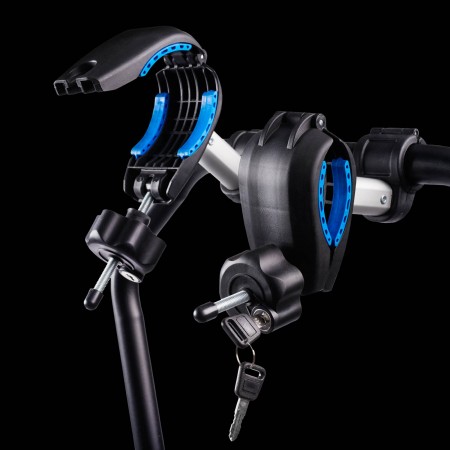

Adjustable arms to secure the bike, coated with rubber to protect the frame .

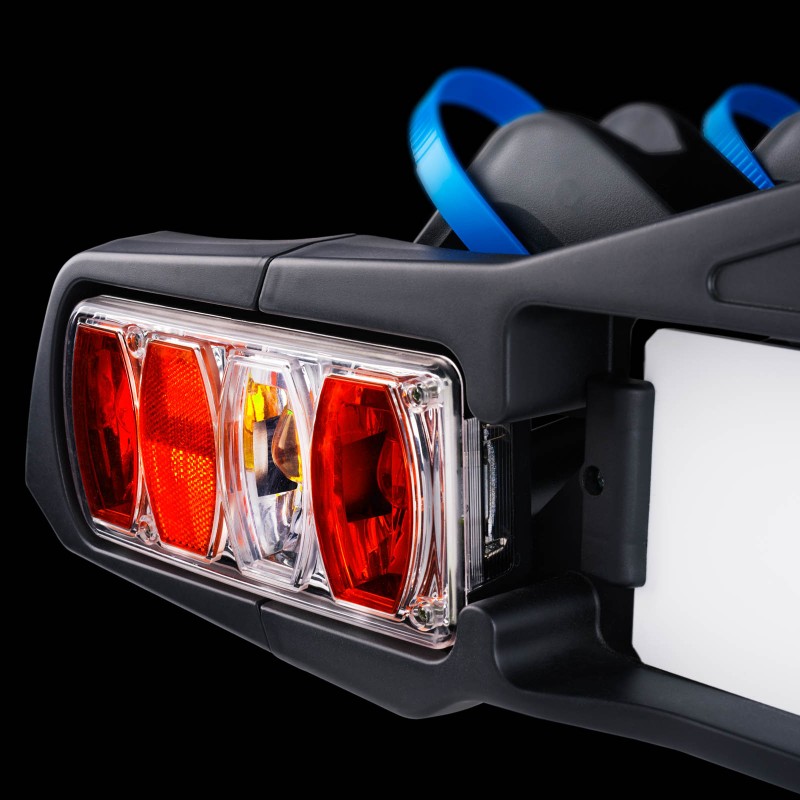

Attractive pilot lights which adapt to the new models of vehicles.
High safety locking system for the bike carrier and for the bikes.
Units per packaging
1
Material
Aluminium / Steel
Main colour
Silver
External dimensions (L/W/H)
1110x940x900 mm
Weight
24,1 Kg
Max. Load
60 Kg
Max. Load per bike
15 Kg
Transports
4 bikes
Anti-theft (bike carrier)
Yes
Anti-theft (bikes)
Yes
Tiltable (with a pedal)
Yes
Power plug type
13 pins
Adaptor 7/13 pins 12V
940-425 (included)
Suitable for towbars (Class A50-X)
Yes
Suitable for 1.25" hitch receivers
No
Suitable for 2" hitch receivers
No
Distance between bikes
180 mm
Suitable for bike frames
26-55 mm
Suitable for wheels
20"-29"
Suitable for tyres up to
4,80"
Crash test
No
ISO/DIS 15263-4: 2006
Yes
Warranty
3 years
