Reference: 940-509

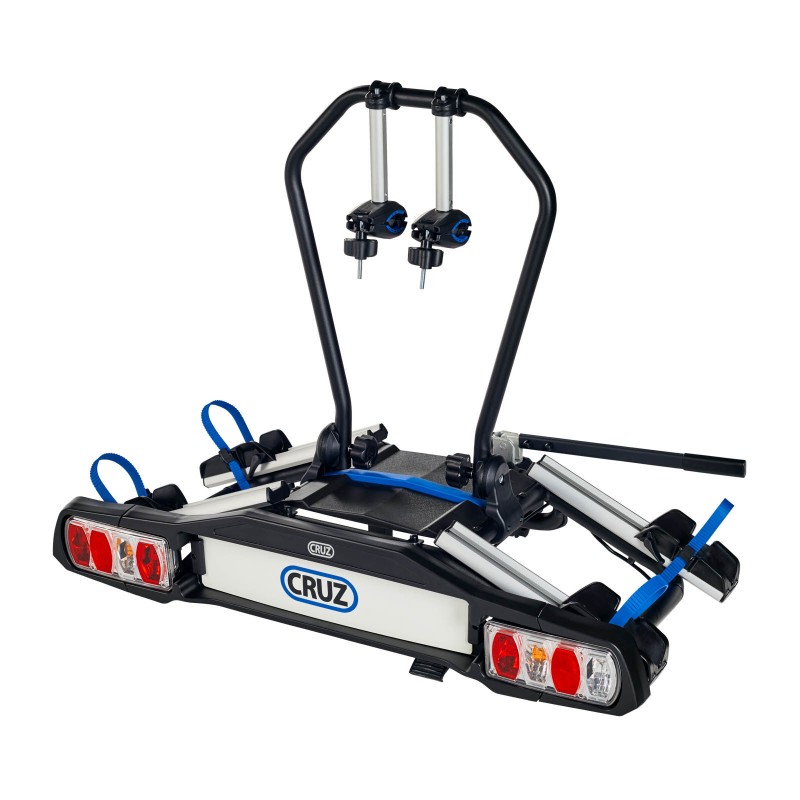

CRUZ Pivot eBike R3 EU towbar - 2 bikes
Towbar bike carrier with a modern design for electric bikes.

Product currently not available in the US

Downloads:
Assembly instructions - 940509.pdf - 17.02 MB
Safety - Use instructions - 278 KB

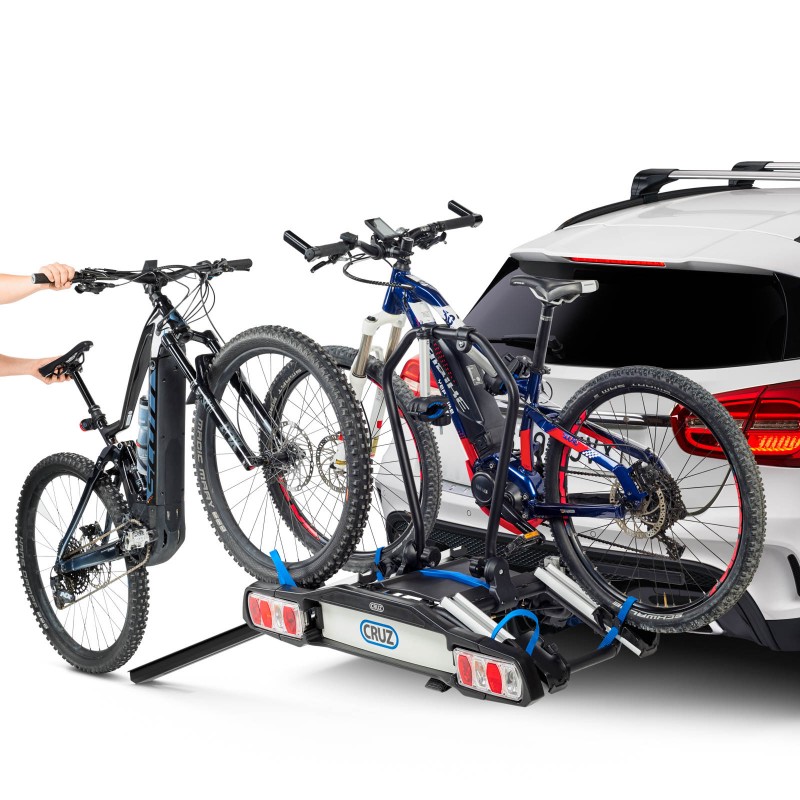

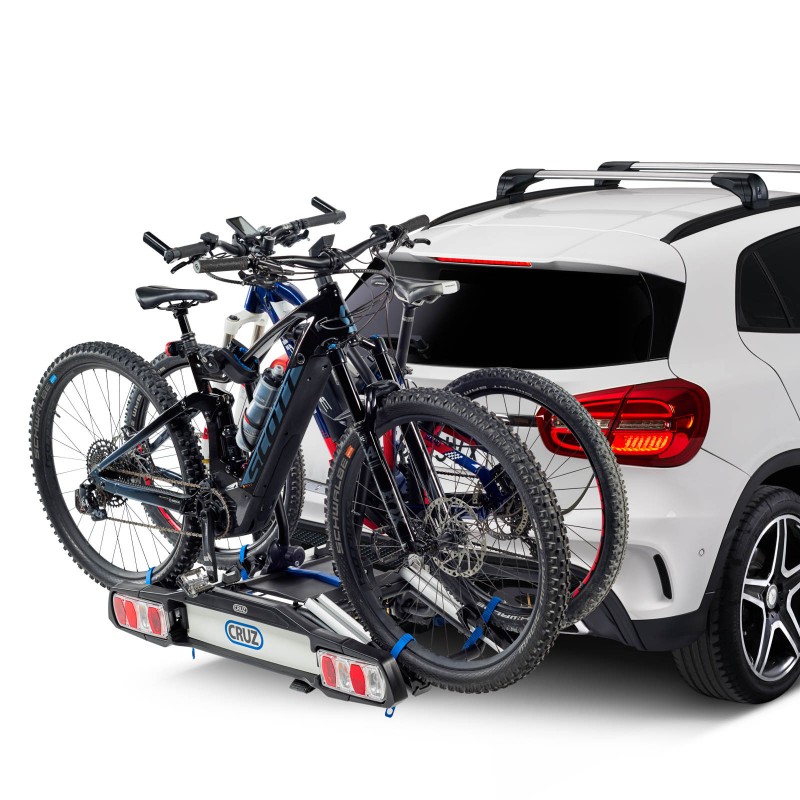

CRUZ Pivot eBike has a great load capacity for transporting electric bikes and all kind of heavyweight bikes.
Attractive design with an elegant combination of materials.
The bike carrier can be easily fitted to most of towbars by means of a lever.

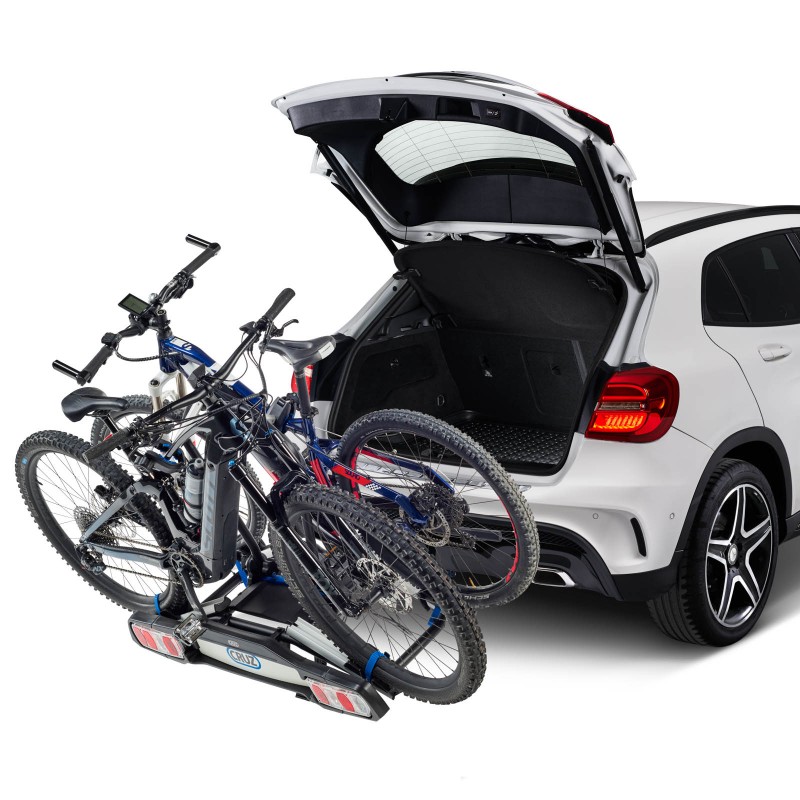

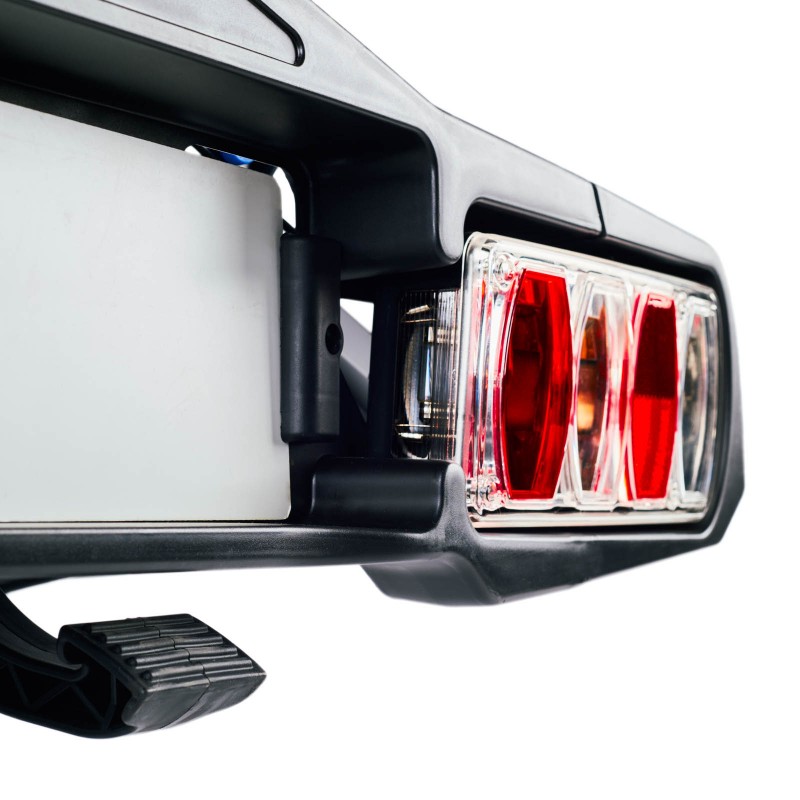

Tiltable, thanks to a tilt mechanism by pedal which allows an easy and quick access to the boot even when the bike is mounted.

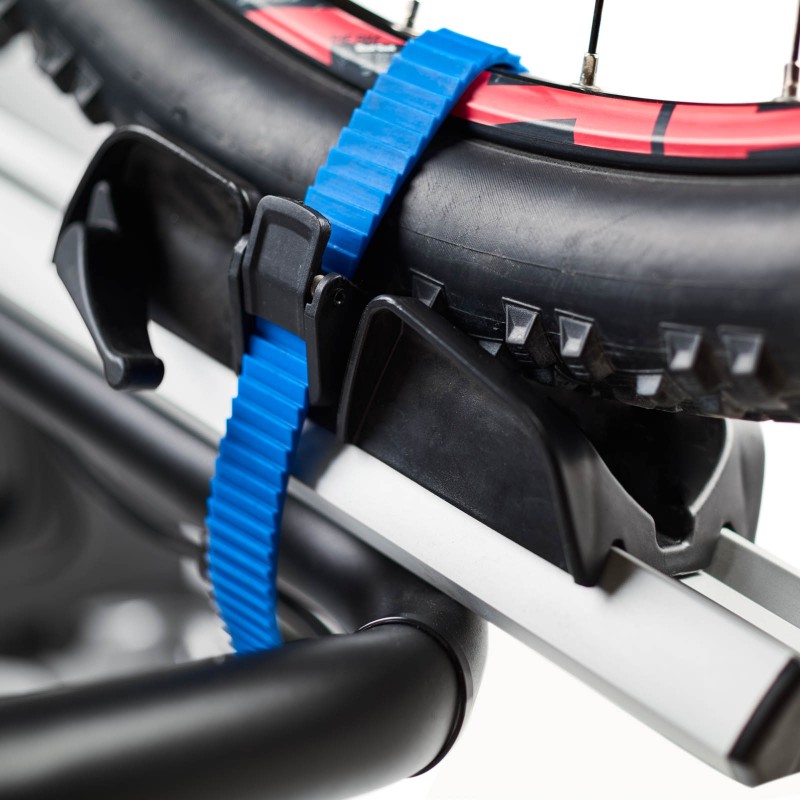

Wide adjustable plastic pieces for comfortable securing of the wheels, with quick-adjust and long length straps to allow compatibility with tires up to 4.8 '' - Fatbike.

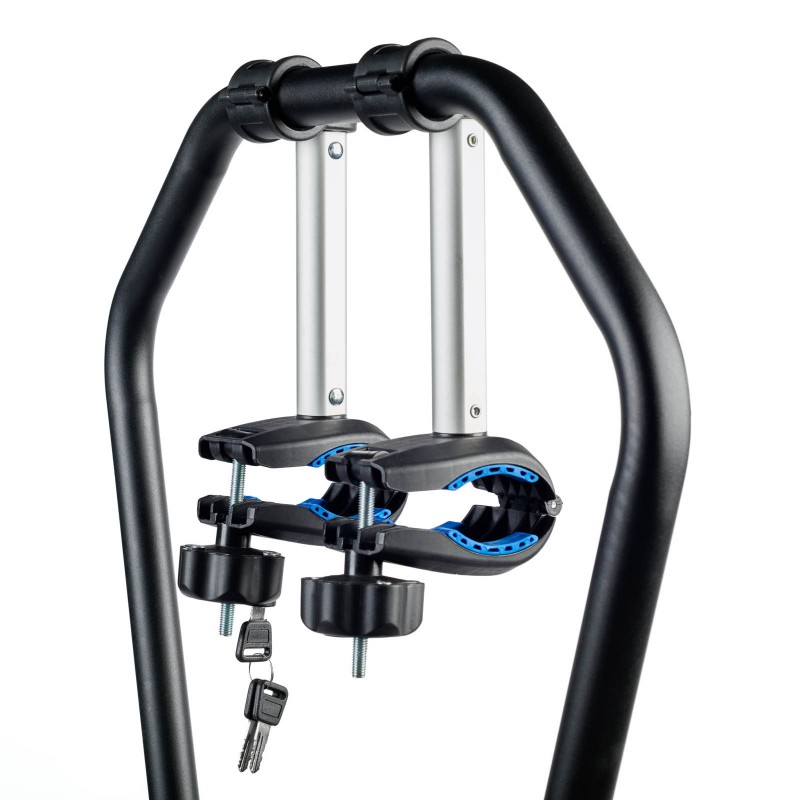

Adjustable arms to secure the bike, coated with rubber to protect the frame .

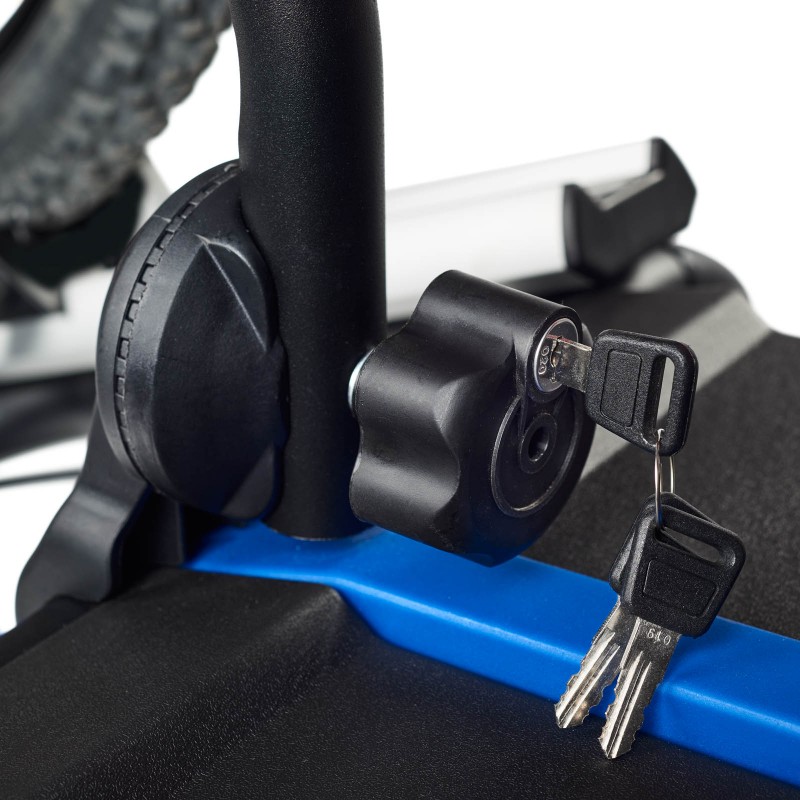

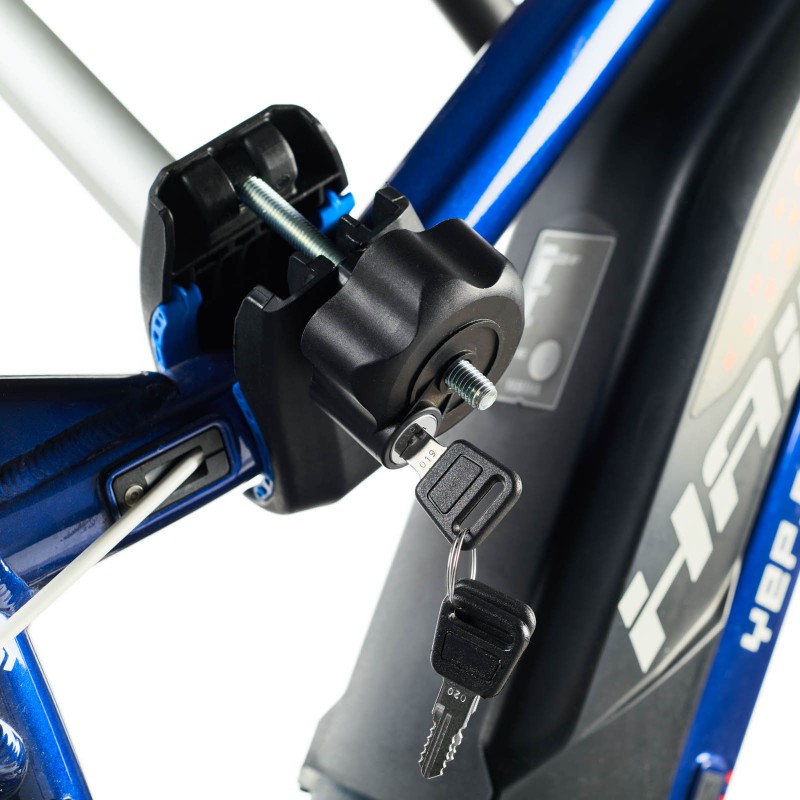

Anti-theft system both for the bike carrier and the bikes.
Units per packaging
1
Material
Aluminium / Steel
Main colour
Silver
External dimensions (L/W/H)
1110x750x900 mm
Weight
18,1 Kg
Max. Load
60 Kg
Max. Load per bike
30 Kg
Transports
2 bikes
Anti-theft (bike carrier)
Yes
Anti-theft (bikes)
Yes
Tiltable (with a pedal)
Yes
Power plug type
13 pins
Adaptor 7/13 pins 12V
940-425 (included)
Suitable for towbars (Class A50-X)
Yes
Suitable for 1.25" hitch receivers
No
Suitable for 2" hitch receivers
No
Distance between bikes
360 mm
Suitable for bike frames
26-55 mm
Suitable for wheels
20"-29"
Suitable for tyres up to
4,80"
ISO/DIS 15263-4: 2006
Yes
Warranty
3 years
