Reference: 940-512

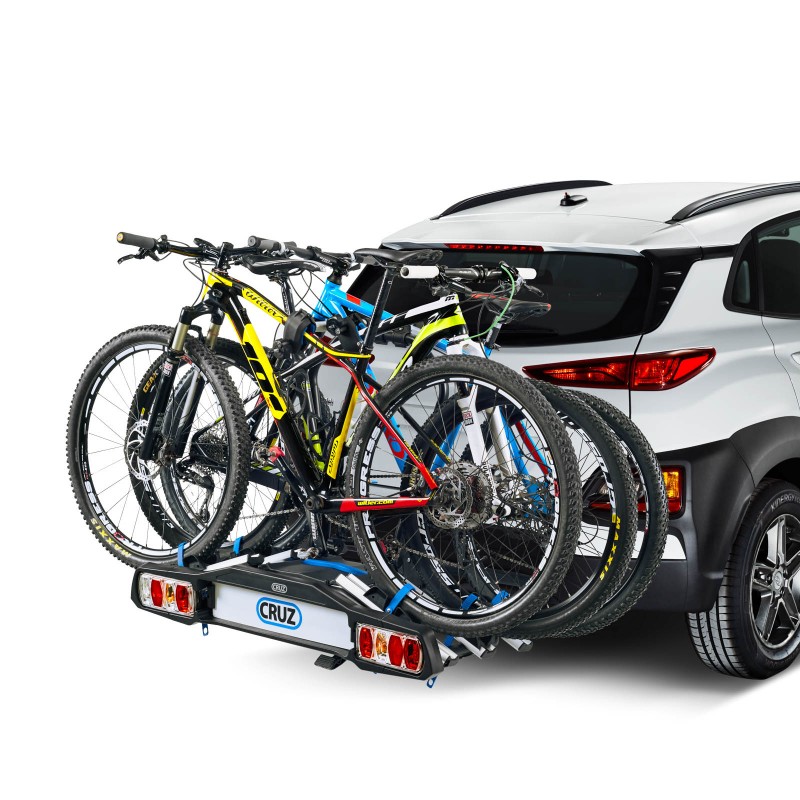

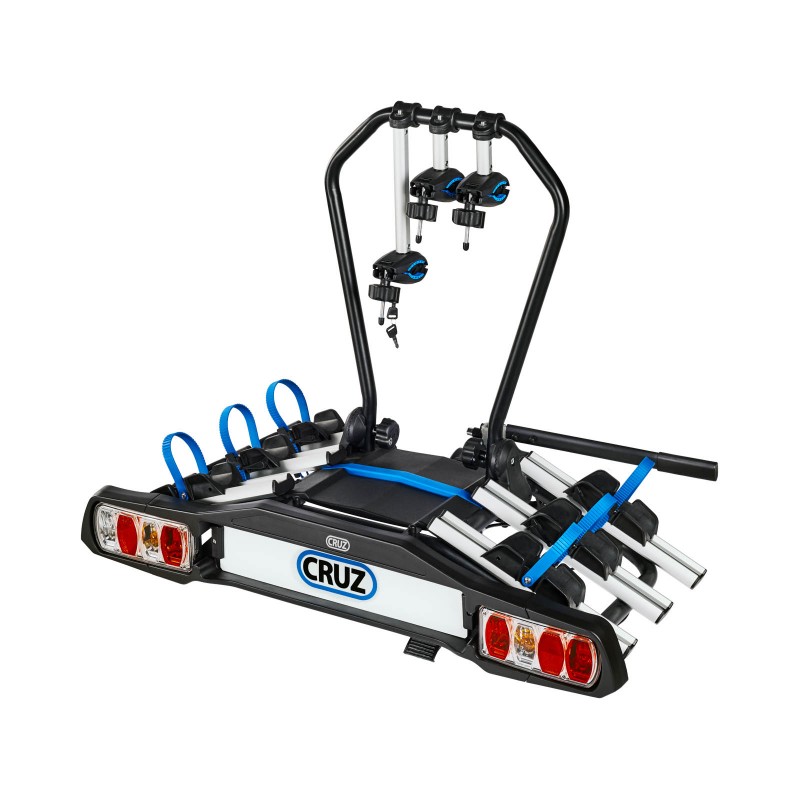

CRUZ Pivot R3 EU towbar - 3 bikes
Towbar bike carrier with a modern design and exclusive characteristics.
Downloads:
Assembly instructions - 940512.pdf - 7.60 MB
Safety - Use instructions - 278 KB
Attractive design with an elegant combination of materials.
Easy fitting to most of towbars (ISO 50).

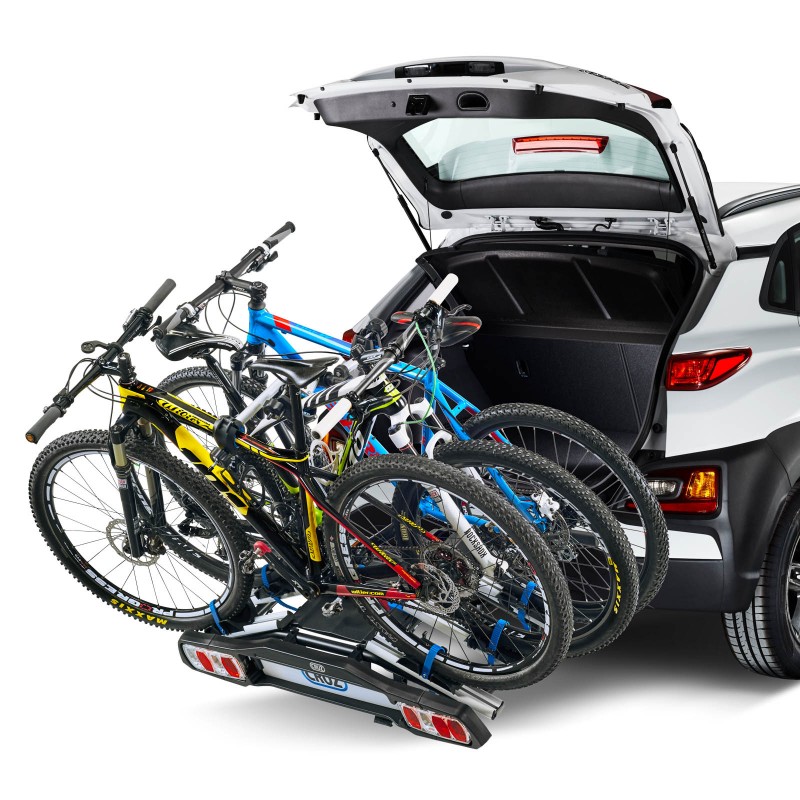

Tiltable, thanks to a tilt mechanism by pedal which allows an easy and quick access to the boot even when the bike is mounted.

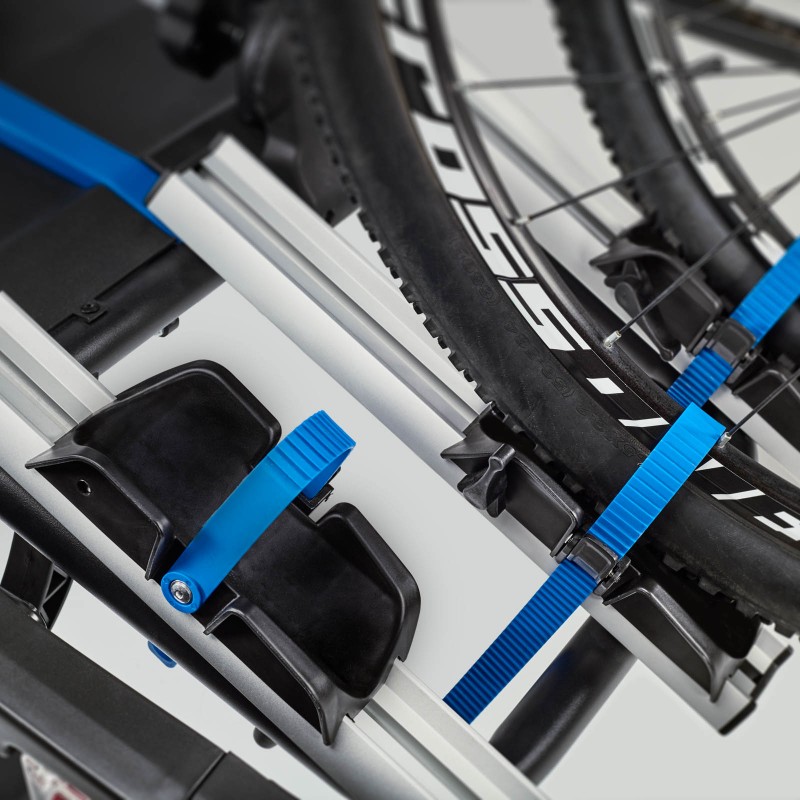

Wide adjustable plastic pieces for comfortable securing of the wheels, with quick-adjust and long length straps to allow compatibility with tires up to 4.8 '' - Fatbike.

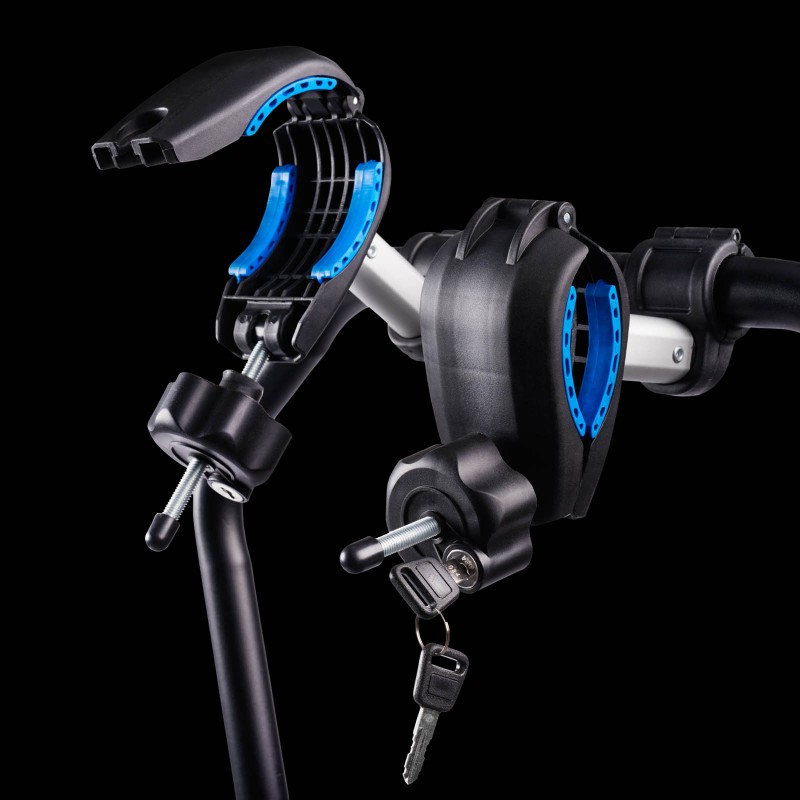

Adjustable arms to secure the bike, coated with rubber to protect the frame .

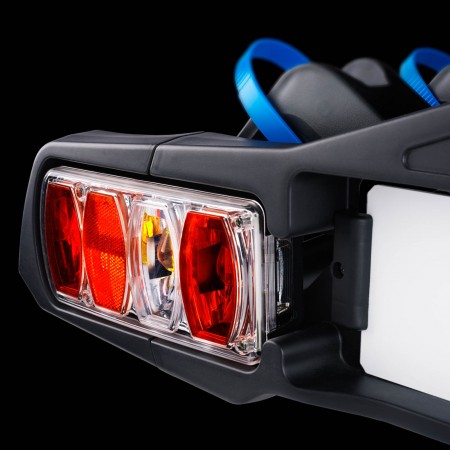

Attractive pilot lights which adapt to the new models of vehicles.
High safety locking system for the bike carrier and for the bikes.
External dimensions (L/W/H)
1110x750x900 mm
Max. Load
45 Kg
Material
Aluminium Steel
Transports
3 bikes
Max. Load per bike
15 Kg
Distance between bikes
18 cm
Anti-theft (bike carrier)
Yes
Anti-theft (bikes)
Yes
Tiltable (with a pedal)
Yes
Adaptor 7/13 pins 12V
940-425 (included)
Powerplug type
13 pins
Suitable for wheels
20"-29"
Suitable for tyres up to
4,80"
Suitable for bike frames
26-55 mm
ISO/DIS 15263-4: 2006
Yes
Warranty
3 years
Units per packaging
1
Suitable for 1.25" hitch receivers
No
Suitable for 2" hitch receivers
No
Weight
19,1 Kg
Main colour
Silver
Suitable for towbars A50 (ECE R55)
Yes
